PostgreSQL on Kind Cluster in WSL Ubuntu — CloudNativePG with Grafana Monitoring

Introduction

Not everyone has an AWS EKS cluster sitting around for learning. The good news — you can run a fully functional CloudNativePG PostgreSQL cluster on your Windows laptop in under 30 minutes, using WSL (Windows Subsystem for Linux) and Kind (Kubernetes IN Docker).

This is the local lab setup that mirrors exactly what you’d run in production. You’ll install a 3-instance PostgreSQL cluster with the CloudNativePG operator, verify it with the cnpg kubectl plugin, and set up a live Grafana dashboard to monitor your cluster — all running inside WSL Ubuntu on Windows.

No cloud account needed. No credit card. Just your laptop.

What you’ll learn:

How to set up WSL Ubuntu and Docker Desktop for Kubernetes development
How to create a local Kind cluster and install CloudNativePG
How to deploy a 3-node PostgreSQL cluster with one YAML file

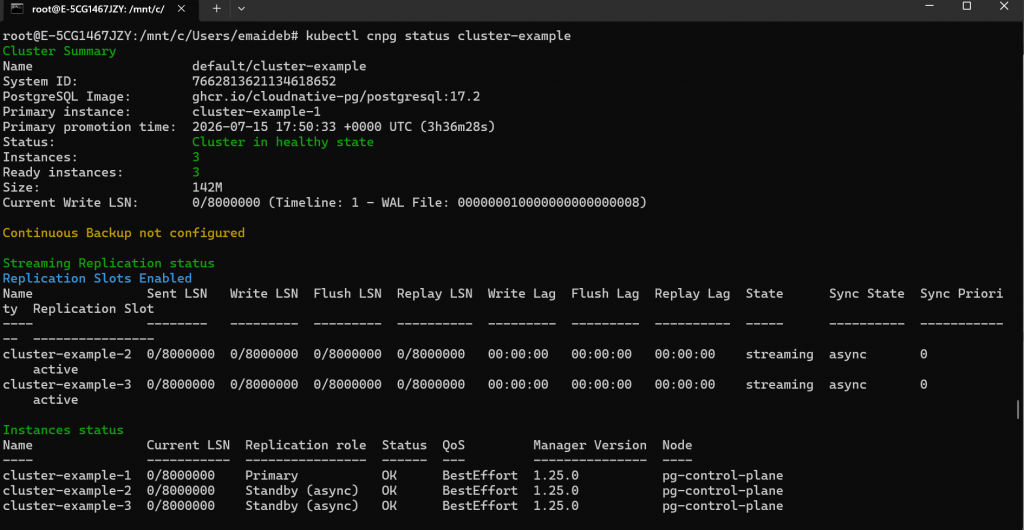

How to use the cnpg kubectl plugin to check cluster status, connect to psql, and run switchovers

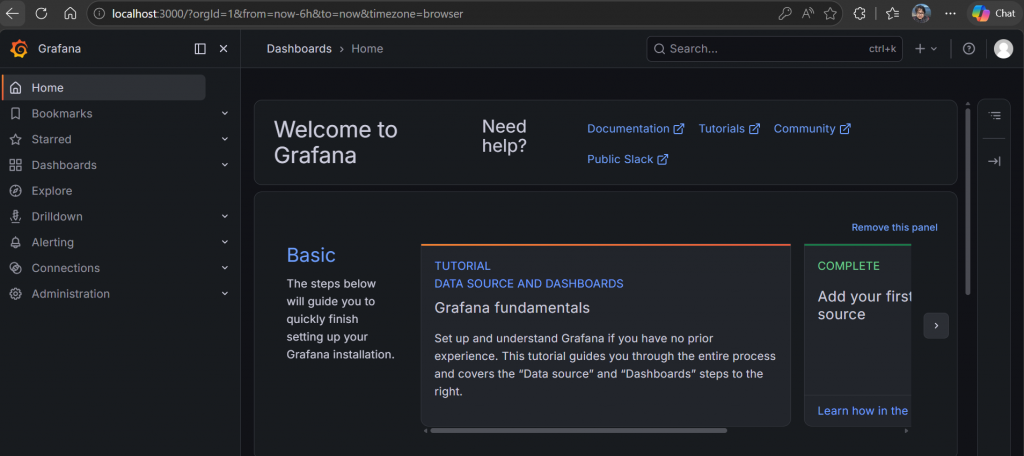

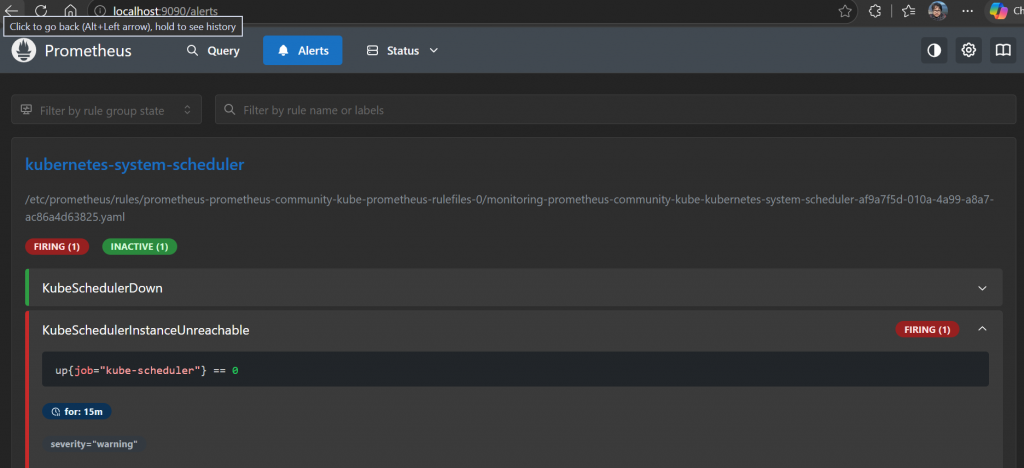

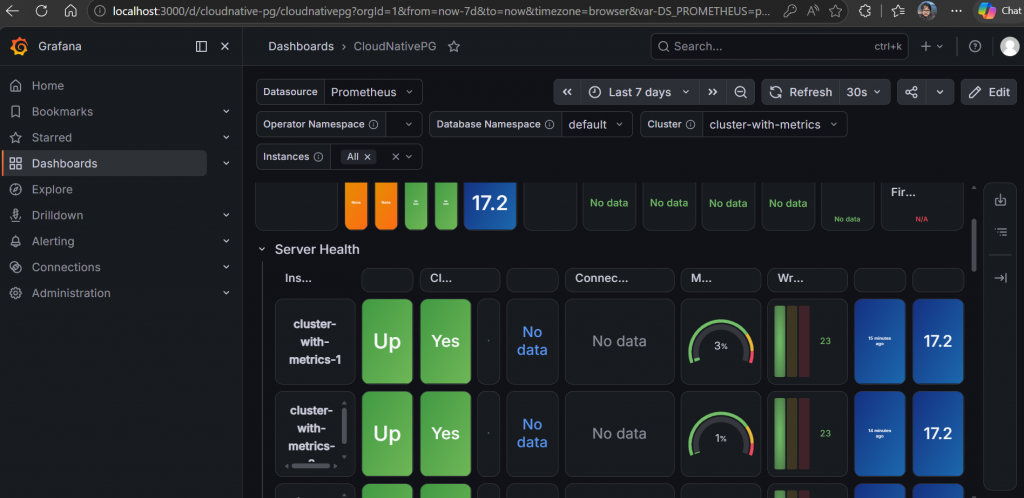

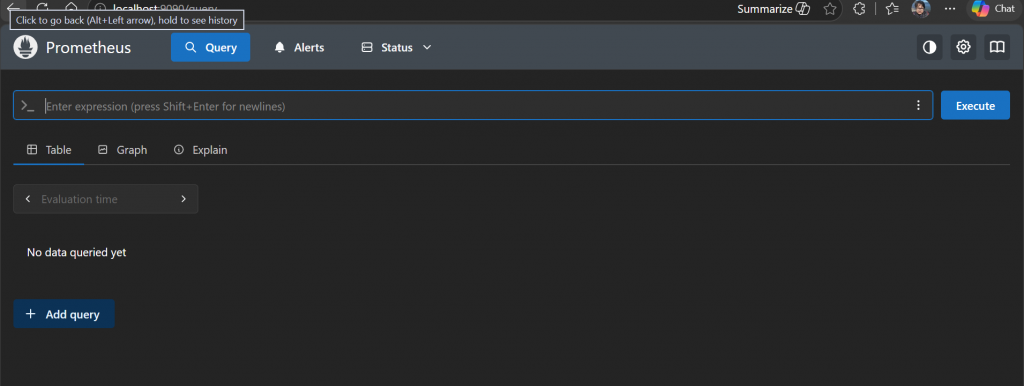

How to enable the Prometheus exporter and set up a Grafana dashboard for real-time monitoring

Prerequisites

Before you start, make sure you have:

[ ] Windows 10 (version 2004+) or Windows 11
[ ] WSL 2 enabled with Ubuntu 22.04 installed (steps below if you haven’t done this)
[ ] At least 8 GB RAM on your laptop (4 GB minimum, 8 GB recommended)
[ ] At least 20 GB free disk space
[ ] Admin rights on your Windows machine

Lab Environment

Component	Version / Details
Host OS	Windows 10/11 with WSL 2
Linux Distro	Ubuntu 22.04 LTS (WSL)
Container Runtime	Docker Desktop (with WSL 2 backend)
Kubernetes	Kind v0.27+ (Kubernetes IN Docker)
Kubernetes Version	v1.32.x
CloudNativePG	v1.25.0 (community open-source)
PostgreSQL	17.2 (community image)
kubectl	v1.32+
cnpg plugin	v1.25.0
Helm	v3.16+
Monitoring	Prometheus + Grafana (kube-prometheus-stack)

Architecture Overview — What We’re Building

Windows 11 Laptop
│
└── WSL 2 (Ubuntu 22.04)
    │
    └── Docker Desktop (WSL backend)
        │
        └── Kind Cluster: "pg"
            │
            ├── Node: pg-control-plane (single node — control + worker)
            │
            ├── Namespace: cnpg-system
            │   └── Pod: cnpg-controller-manager   ← CloudNativePG Operator
            │
            ├── Namespace: default
            │   ├── Pod: cluster-example-1  [PRIMARY]
            │   ├── Pod: cluster-example-2  [REPLICA]
            │   ├── Pod: cluster-example-3  [REPLICA]
            │   ├── Svc: cluster-example-rw  → Primary
            │   ├── Svc: cluster-example-ro  → Replicas
            │   └── Svc: cluster-example-r   → Any
            │
            └── Namespace: monitoring
                ├── Pod: prometheus-server
                └── Pod: grafana

Note: Kind uses a single node for local testing. In production (AWS EKS), you’d have 3 nodes across 3 AZs. The operator behaviour is identical — this local setup is a perfect learning and testing environment.

Part 1: Set Up WSL 2 Ubuntu on Windows

If you already have WSL Ubuntu running, skip to Part 2.

Step 1.1: Enable WSL 2

Open PowerShell as Administrator and run:

wsl --install

This installs WSL 2 and Ubuntu 22.04 by default. Restart your computer when prompted.

After restart, Ubuntu will finish setup — create your Linux username and password when asked.

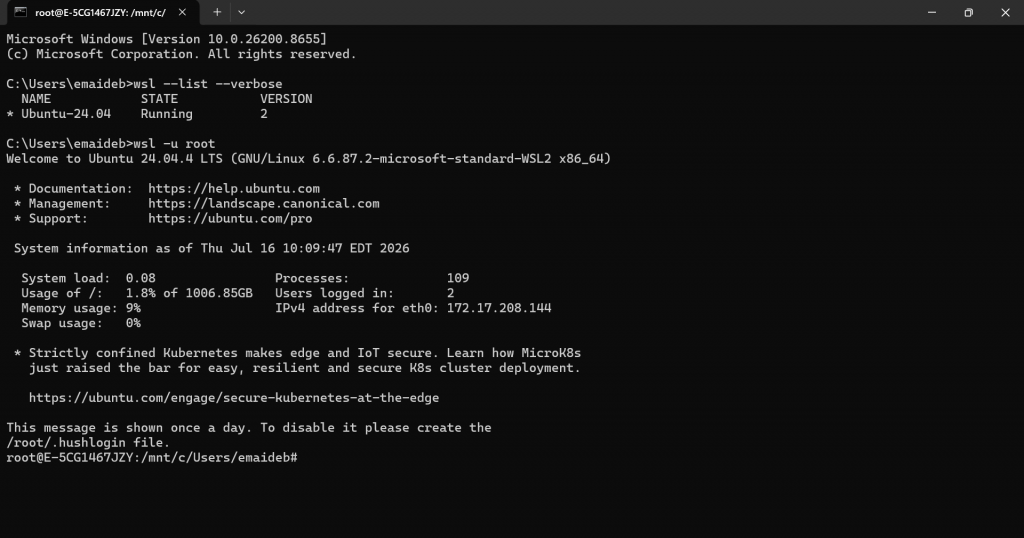

Verify WSL version:

wsl --list --verbose

Expected output:

  NAME            STATE           VERSION
* Ubuntu-22.04    Running         2

Step 1.2: Install Docker Desktop with WSL 2 Backend

Download Docker Desktop from https://docs.docker.com/desktop/setup/install/windows-install/
During installation, make sure “Use WSL 2 instead of Hyper-V” is checked
After installation, open Docker Desktop → Settings → Resources → WSL Integration → Enable for Ubuntu-22.04

Verify Docker is accessible from inside WSL Ubuntu:

# Open Ubuntu terminal and run:
docker --version
docker run hello-world

Expected output:

Docker version 27.x.x, build xxxxx
...
Hello from Docker!

Part 2: Install Kind and kubectl

Open your Ubuntu WSL terminal for all remaining steps.

Step 2.1: Install kubectl

# Download the latest kubectl binary
curl -LO "https://dl.k8s.io/release/$(curl -Ls https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"

# Make it executable and move to PATH
chmod +x kubectl
sudo mv kubectl /usr/local/bin/kubectl

# Verify
kubectl version --client

Expected output:

Client Version: v1.32.x
Kustomize Version: vX.X.X

root@E-5CG1467JZY:/mnt/c/Users/emaideb# curl -LO “https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl”
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 56.7M 100 56.7M 0 0 19.8M 0 0:00:02 0:00:02 –:–:– 19.8M
root@E-5CG1467JZY:/mnt/c/Users/emaideb# chmod +x ./kubectl
root@E-5CG1467JZY:/mnt/c/Users/emaideb# sudo mv ./kubectl /usr/local/bin/kubectl

Step 2.2: Install Kind

# Download Kind binary for Linux amd64
curl -Lo ./kind https://kind.sigs.k8s.io/dl/v0.27.0/kind-linux-amd64

# Make executable and move to PATH
chmod +x kind
sudo mv kind /usr/local/bin/kind

# Verify
kind --version

Expected output:

root@E-5CG1467JZY:/mnt/c/Users/emaideb# [ $(uname -m) = x86_64 ] && curl -Lo ./kind https://kind.sigs.k8s.io/dl/v0.32.0/kind-linux-amd64
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100    97  100    97    0     0   1022      0 --:--:-- --:--:-- --:--:--  1031
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
100 10.0M  100 10.0M    0     0  11.3M      0 --:--:-- --:--:-- --:--:-- 16.1M
root@E-5CG1467JZY:/mnt/c/Users/emaideb# chmod +x ./kind
sudo mv ./kind /usr/local/bin/kind
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kind --version
kind version 0.32.0

Step 2.3: Install Helm

# Download and run the Helm install script
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash

# Verify
helm version

Expected output:

root@E-5CG1467JZY:/mnt/c/Users/emaideb# curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 11929  100 11929    0     0  50403      0 --:--:-- --:--:-- --:--:-- 50546
Downloading https://get.helm.sh/helm-v3.21.3-linux-amd64.tar.gz
Verifying checksum... Done.
Preparing to install helm into /usr/local/bin
helm installed into /usr/local/bin/helm
root@E-5CG1467JZY:/mnt/c/Users/emaideb# helm version
version.BuildInfo{Version:"v3.21.3", GitCommit:"1ad6e68924fdf6fb0c7dcef8e9e1dfc0f36eaed6", GitTreeState:"clean", GoVersion:"go1.26.5"}

Part 3: Create Your Kind Kubernetes Cluster

Step 3.1: Create the Cluster

kind create cluster --name pg

Expected output (takes 1–2 minutes):

Creating cluster "pg" ...
 ✓ Ensuring node image (kindest/node:v1.32.2) 🖼
 ✓ Preparing nodes 📦
 ✓ Writing configuration 📜
 ✓ Starting control-plane 🕹️
 ✓ Installing CNI 🔌
 ✓ Installing StorageClass 💾
Set kubectl context to "kind-pg"
You can now use your cluster with:

kubectl cluster-info --context kind-pg

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kind create cluster –name pg
Creating cluster “pg” …
✓ Ensuring node image (kindest/node:v1.36.1) 🖼
✓ Preparing nodes 📦
✓ Writing configuration 📜
✓ Starting control-plane 🕹️
✓ Installing CNI 🔌
✓ Installing StorageClass 💾
Set kubectl context to “kind-pg”
You can now use your cluster with:

kubectl cluster-info –context kind-pg

Step 3.2: Verify the Cluster

# Check nodes
kubectl get nodes

Expected output:

NAME               STATUS   ROLES           AGE   VERSION
pg-control-plane   Ready    control-plane   89s   v1.32.2

# Check all system pods are running
kubectl get pods -A

Expected output:

NAMESPACE            NAME                                         READY   STATUS    RESTARTS   AGE
kube-system          coredns-668d6bf9bc-9slvd                     1/1     Running   0          89s
kube-system          coredns-668d6bf9bc-p6dpd                     1/1     Running   0          89s
kube-system          etcd-pg-control-plane                        1/1     Running   0          95s
kube-system          kindnet-bltsf                                1/1     Running   0          89s
kube-system          kube-apiserver-pg-control-plane              1/1     Running   0          95s
kube-system          kube-controller-manager-pg-control-plane     1/1     Running   0          95s
kube-system          kube-proxy-lbm4l                             1/1     Running   0          89s
kube-system          kube-scheduler-pg-control-plane              1/1     Running   0          95s
local-path-storage   local-path-provisioner-7dc846544d-hsvkv      1/1     Running   0          89s

Note: Kind automatically includes the local-path-provisioner StorageClass — this is what CloudNativePG will use to provision PVCs for each PostgreSQL instance. No additional storage setup needed for local testing.

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get nodes
NAME STATUS ROLES AGE VERSION
pg-control-plane Ready control-plane 7m59s v1.36.1
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get -A pods
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-589f44dc88-htt89 1/1 Running 0 8m8s
kube-system coredns-589f44dc88-sn22w 1/1 Running 0 8m8s
kube-system etcd-pg-control-plane 1/1 Running 0 8m14s
kube-system kindnet-np5ps 1/1 Running 0 8m8s
kube-system kube-apiserver-pg-control-plane 1/1 Running 0 8m15s
kube-system kube-controller-manager-pg-control-plane 1/1 Running 0 8m14s
kube-system kube-proxy-pvqlh 1/1 Running 0 8m8s
kube-system kube-scheduler-pg-control-plane 1/1 Running 0 8m14s
local-path-storage local-path-provisioner-855c7b7774-j2nqk 1/1 Running 0 8m8s

Part 4: Install the CloudNativePG Operator

Step 4.1: Apply the Operator Manifest

kubectl apply --server-side -f \
  https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/release-1.25/releases/cnpg-1.25.0.yaml

Expected output (many lines):

namespace/cnpg-system serverside-applied
customresourcedefinition.apiextensions.k8s.io/backups.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/clusters.postgresql.cnpg.io serverside-applied
...
deployment.apps/cnpg-controller-manager serverside-applied

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl apply –server-side -f https://raw.githubusercontent.com/cloudnative-pg/
cloudnative-pg/release-1.25/releases/cnpg-1.25.0.yaml
namespace/cnpg-system serverside-applied
customresourcedefinition.apiextensions.k8s.io/backups.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/clusterimagecatalogs.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/clusters.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/databases.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/imagecatalogs.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/poolers.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/publications.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/scheduledbackups.postgresql.cnpg.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/subscriptions.postgresql.cnpg.io serverside-applied
serviceaccount/cnpg-manager serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-database-editor-role serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-database-viewer-role serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-manager serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-publication-editor-role serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-publication-viewer-role serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-subscription-editor-role serverside-applied
clusterrole.rbac.authorization.k8s.io/cnpg-subscription-viewer-role serverside-applied
clusterrolebinding.rbac.authorization.k8s.io/cnpg-manager-rolebinding serverside-applied
configmap/cnpg-default-monitoring serverside-applied
service/cnpg-webhook-service serverside-applied
deployment.apps/cnpg-controller-manager serverside-applied
mutatingwebhookconfiguration.admissionregistration.k8s.io/cnpg-mutating-webhook-configuration serverside-applied
validatingwebhookconfiguration.admissionregistration.k8s.io/cnpg-validating-webhook-configuration serverside-applied
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 16s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 21s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 22s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 29s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 31s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 41s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 0/1 1 0 43s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 1/1 1 1 62s
root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 1/1 1 1 63s

Step 4.2: Verify the Operator is Running

kubectl get deployment -n cnpg-system cnpg-controller-manager

Expected output:

NAME                     READY   UP-TO-DATE   AVAILABLE   AGE
cnpg-controller-manager  1/1     1            1           102s

# Also check the pod
kubectl get pods -n cnpg-system

Expected output:

NAME                                       READY   STATUS    RESTARTS   AGE
cnpg-controller-manager-7d9f7b4c9-xk2p7   1/1     Running   0          2m

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get deployment -n cnpg-system cnpg-controller-manager
NAME READY UP-TO-DATE AVAILABLE AGE
cnpg-controller-manager 1/1 1 1 63s

Step 4.3: Install the cnpg kubectl Plugin

The cnpg plugin extends kubectl with PostgreSQL-specific commands — cluster status, psql access, switchover, reports, and more. On Ubuntu, install it via the Debian package:

# Download the .deb package
wget https://github.com/cloudnative-pg/cloudnative-pg/releases/download/v1.25.0/kubectl-cnpg_1.25.0_linux_x86_64.deb \
  --output-document kube-plugin.deb

# Install
sudo dpkg -i kube-plugin.deb

# Verify
kubectl cnpg --help

Alternative — install via shell script (works on any Linux):

curl -sSfL \
  https://github.com/cloudnative-pg/cloudnative-pg/raw/main/hack/install-cnpg-plugin.sh \
  | sudo sh -s -- -b /usr/local/bin

root@E-5CG1467JZY:/mnt/c/Users/emaideb# curl -sSfL https://github.com/cloudnative-pg/cloudnative-pg/raw/main/hack/install-cnpg-plugin.sh | sudo sh -s — -b /usr/local/bin
cloudnative-pg/cloudnative-pg info checking GitHub for latest tag
cloudnative-pg/cloudnative-pg info found version: 1.30.0 for v1.30.0/linux/x86_64
cloudnative-pg/cloudnative-pg info installed /usr/local/bin/kubectl-cnpg

Part 5: Deploy a PostgreSQL Cluster

Step 5.1: Download the Sample Cluster Manifest


cat cluster-example.yaml
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
name: cluster-example
spec:
instances: 3
storage:
size: 1Gi

Output:

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: cluster-example
spec:
  instances: 3
  storage:
    size: 1Gi

This simple YAML is all you need. The operator fills in all the defaults — PostgreSQL version, replication setup, services, secrets, and storage provisioning.

Step 5.2: Apply the Cluster Manifest

kubectl apply -f cluster-example.yaml

Expected output:

cluster.postgresql.cnpg.io/cluster-example created

Step 5.3: Watch the Cluster Initialize

kubectl get pods -w

Watch the pods come up one at a time:

NAME                READY   STATUS     RESTARTS   AGE
cluster-example-1   0/1     Init:0/1   0          10s
cluster-example-1   1/1     Running    0          35s   ← Primary ready
cluster-example-2   0/1     Init:0/1   0          40s
cluster-example-2   1/1     Running    0          65s   ← Replica 1 joined
cluster-example-3   0/1     Init:0/1   0          70s
cluster-example-3   1/1     Running    0          95s   ← Replica 2 joined

Press Ctrl+C once all 3 show Running.

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl apply -f cluster-example.yaml
cluster.postgresql.cnpg.io/cluster-example created

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
cluster-example-1 1/1 Running 0 40s 10.244.0.8 pg-control-plane
cluster-example-1-initdb-gddpc 0/1 Completed 0 94s 10.244.0.7 pg-control-plane
cluster-example-2 1/1 Running 0 20s 10.244.0.11 pg-control-plane
cluster-example-2-join-wv6mc 0/1 Completed 0 29s 10.244.0.10 pg-control-plane
cluster-example-3 0/1 Running 0 3s 10.244.0.14 pg-control-plane
cluster-example-3-join-sm5sv 0/1 Completed 0 9s 10.244.0.13 pg-control-plane

Step 5.4: Verify with kubectl get pods -o wide

kubectl get pods -o wide

Expected output:

NAME                READY   STATUS    RESTARTS   AGE     IP            NODE
cluster-example-1   1/1     Running   0          3m22s   10.244.0.8    pg-control-plane
cluster-example-2   1/1     Running   0          2m59s   10.244.0.11   pg-control-plane
cluster-example-3   1/1     Running   0          2m41s   10.244.0.14   pg-control-plane

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
cluster-example-1 1/1 Running 0 47s 10.244.0.8 pg-control-plane
cluster-example-1-initdb-gddpc 0/1 Completed 0 101s 10.244.0.7 pg-control-plane
cluster-example-2 1/1 Running 0 27s 10.244.0.11 pg-control-plane
cluster-example-2-join-wv6mc 0/1 Completed 0 36s 10.244.0.10 pg-control-plane
cluster-example-3 0/1 Running 0 10s 10.244.0.14 pg-control-plane
cluster-example-3-join-sm5sv 0/1 Completed 0 16s 10.244.0.13 pg-control-plane

Step 5.5: Check Services

kubectl get svc

Expected output:

NAME                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
cluster-example-r     ClusterIP   10.96.x.x       <none>        5432/TCP   3m
cluster-example-ro    ClusterIP   10.96.x.x       <none>        5432/TCP   3m
cluster-example-rw    ClusterIP   10.96.x.x       <none>        5432/TCP   3m
kubernetes            ClusterIP   10.96.0.1       <none>        443/TCP    10m

root@E-5CG1467JZY:/mnt/c/Users/emaideb# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cluster-example-r ClusterIP 10.96.34.217 5432/TCP 20h
cluster-example-ro ClusterIP 10.96.20.211 5432/TCP 20h
cluster-example-rw ClusterIP 10.96.7.20 5432/TCP 20h
kubernetes ClusterIP 10.96.0.1 443/TCP 21h

Part 6: Manage the Cluster with the cnpg Plugin

Step 6.1: Full Cluster Status

kubectl cnpg status cluster-example

Expected output:

Cluster Summary
Name:               default/cluster-example
System ID:          7473169624452608026
Postgres Image:     ghcr.io/cloudnative-pg/postgresql:17.2
Primary instance:   cluster-example-1
Primary start time: 2025-02-19 16:35:00 +0000 UTC (uptime 14m7s)
Status:             Cluster in healthy state
Instances:          3
Ready instances:    3
Size:               142M
Current Write LSN:  0/8000000 (Timeline: 1 - WAL File: 000000010000000000000008)

Step 6.2: Connect to the Primary with psql

kubectl cnpg psql cluster-example

This drops you into a psql session directly on the primary:

psql (17.2 (Debian 17.2-1.pgdg110+1))
Type "help" for help.

postgres=# select pg_is_in_recovery();
 pg_is_in_recovery
-------------------
 f
(1 row)
-- f = false = this is the PRIMARY ✅

postgres=# select datname from pg_database;
  datname
-----------
 postgres
 app
 template1
 template0
(4 rows)

postgres=# \q

Step 6.3: Connect to a Replica

kubectl cnpg psql --replica cluster-example

postgres=# select pg_is_in_recovery();
 pg_is_in_recovery
-------------------
 t
(1 row)
-- t = true = this is a REPLICA ✅

postgres=# \q

Step 6.4: Useful cnpg Plugin Commands Reference

Command	What it does
`kubectl cnpg status cluster-example`	Full cluster health overview
`kubectl cnpg psql cluster-example`	Interactive psql on primary
`kubectl cnpg psql --replica cluster-example`	Interactive psql on a replica
`kubectl cnpg promote cluster-example cluster-example-2`	Promote replica-2 to primary (switchover)
`kubectl cnpg restart cluster-example`	Rolling restart of entire cluster
`kubectl cnpg reload cluster-example`	Reload PostgreSQL config without restart
`kubectl cnpg maintenance set --all-namespaces`	Put all clusters in maintenance mode
`kubectl cnpg maintenance unset --all-namespaces`	Remove maintenance mode
`kubectl cnpg report operator -n cnpg-system`	Generate debug report ZIP

Part 7: Enable Prometheus Monitoring and Grafana Dashboard

CloudNativePG ships with a built-in Prometheus metrics exporter on every pod. No extra sidecar containers needed. You just need to install Prometheus and Grafana to consume those metrics.

Step 7.1: Add the Prometheus Community Helm Repo

helm repo add prometheus-community \
  https://prometheus-community.github.io/helm-charts
helm repo update

Step 7.2: Install the Kube-Prometheus Stack

This installs Prometheus, Grafana, and AlertManager in one Helm release, pre-configured with the CloudNativePG sample settings:

helm upgrade --install prometheus-community \
  prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --create-namespace \
  -f https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/main/docs/src/samples/monitoring/kube-stack-config.yaml \
  --wait

This takes 2–3 minutes. When done:

kubectl get pods -n monitoring

Expected output:

NAME                                                     READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-community-kube-alertmanager-0    2/2     Running   0          2m
prometheus-community-grafana-xxx                         3/3     Running   0          2m
prometheus-community-kube-operator-xxx                   1/1     Running   0          2m
prometheus-community-kube-prometheus-0                   2/2     Running   0          2m
prometheus-community-kube-state-metrics-xxx              1/1     Running   0          2m

kubectl get pods -n monitoring

NAME READY STATUS RESTARTS AGE
alertmanager-prometheus-community-kube-alertmanager-0 2/2 Running 0 5h31m
prometheus-community-grafana-6f944b4bc4-l5bkb 3/3 Running 0 5h32m
prometheus-community-kube-operator-6979b86868-27r45 1/1 Running 0 5h32m
prometheus-community-kube-state-metrics-dc95ccbf8-4vb7b 1/1 Running 0 5h32m
prometheus-prometheus-community-kube-prometheus-0 2/2 Running 0 5h31m

Step 7.3: Deploy a Cluster with Metrics Enabled

The sample cluster-example.yaml doesn’t have monitoring enabled by default. Create a new cluster manifest with a PodMonitor so Prometheus discovers your PostgreSQL pods automatically:

cat <<EOF > cluster-with-metrics.yaml
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: cluster-with-metrics
spec:
  instances: 3
  storage:
    size: 1Gi
  monitoring:
    enablePodMonitor: true
---
apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: cluster-with-metrics
  labels:
    release: prometheus-community
spec:
  selector:
    matchLabels:
      k8s.enterprisedb.io/cluster: cluster-with-metrics
  podMetricsEndpoints:
  - port: metrics
EOF

kubectl apply -f cluster-with-metrics.yaml

Expected output:

cluster.postgresql.cnpg.io/cluster-with-metrics created
podmonitor.monitoring.coreos.com/cluster-with-metrics created

Step 7.4: Access Prometheus

# Port-forward Prometheus to your local browser
kubectl port-forward svc/prometheus-community-kube-prometheus \
  9090:9090 -n monitoring &

Open your browser (on Windows): http://localhost:9090

In the Prometheus search bar, try:

cnpg_collector_up

You should see metrics from your PostgreSQL pods.

Step 7.5: Access Grafana

# Port-forward Grafana to your local browser
kubectl port-forward svc/prometheus-community-grafana \
  3000:80 -n monitoring &

Open your browser (on Windows): http://localhost:3000

Username: admin
Password: prom-operator

Step 7.6: Import the CloudNativePG Grafana Dashboard

In Grafana, click Dashboards (left sidebar) → New → Import
Click “Upload dashboard JSON file”
Download the dashboard JSON first:

curl -o grafana-dashboard.json \
  https://github.com/cloudnative-pg/grafana-dashboards/blob/main/charts/cluster/grafana-dashboard.json

Upload the grafana-dashboard.json file in the Grafana import dialog
Select Prometheus as the data source → Click Import

The dashboard shows:

Cluster status — which instance is primary, how many are healthy
Replication lag — streaming delay between primary and replicas
WAL generation rate — write activity on primary
Storage usage — PVC usage per instance
Connection counts — active connections per instance
Postgres uptime — per-instance uptime

Step 7.7: Add Default Prometheus Alert Rules

kubectl apply -f \
  https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/main/docs/src/samples/monitoring/prometheusrule.yaml

Verify alerts are registered:

kubectl get prometheusrules

Expected output:

NAME                               AGE
cnpg-default-alerts                30s

In Prometheus, click Alerts to see the pre-configured rules for things like replication lag, pod failures, and backup failures.

Part 8: What’s Built-In to the CloudNativePG Metrics Exporter

You don’t need to configure anything extra to get metrics. Every CloudNativePG pod exposes these built-in metrics on port metrics:

Metric Category	Examples
Operator level	Operator version, watch namespace, reconcile errors
Instance level	`pg_up`, replication state, WAL position, timeline
Database level	Connection counts, transaction rates, lock waits
pg_stat_statements	Top queries by execution time (if enabled)
Custom metrics	Your own queries via ConfigMap — compatible with postgres_exporter syntax

All queries run with the pg_monitor role, are read-only, and are transactionally atomic. The exporter also auto-discovers databases — you don’t need to configure per-database scrapers.

Common Errors and Fixes

Error 1: Kind cluster fails to start — “docker daemon not running”

Symptom:

ERROR: failed to create cluster: running kind with rootless provider requires cgroup v2

error during connect: Get "http://...": dial tcp ... connection refused

Cause: Docker Desktop is not running, or WSL integration isn’t enabled for Ubuntu.

Fix:

Open Docker Desktop on Windows → make sure it’s fully started (whale icon in system tray is steady)
Docker Desktop → Settings → Resources → WSL Integration → toggle Ubuntu-22.04 ON → Apply & Restart
Reopen Ubuntu terminal and retry kind create cluster --name pg

Error 2: Pods stuck in Pending — “no nodes available to schedule pods”

Symptom:

kubectl get pods
NAME                READY   STATUS    RESTARTS   AGE
cluster-example-1   0/1     Pending   0          5m

Cause: Usually resource pressure — the Kind node doesn’t have enough memory.

Fix:

# Check events on the stuck pod
kubectl describe pod cluster-example-1 | grep -A 5 Events

# If it says "Insufficient memory", increase Docker Desktop memory:
# Docker Desktop → Settings → Resources → Memory → set to 6GB+
# Then restart Docker Desktop and recreate the cluster
kind delete cluster --name pg
kind create cluster --name pg

Error 3: Port-forward conflicts — “address already in use”

Symptom:

error: unable to listen on port 3000: ... address already in use

Cause: Another process is already using that port (common on WSL when port-forward processes aren’t killed).

Fix:

# Kill all background port-forward processes
pkill -f "kubectl port-forward"

# Retry with a different local port
kubectl port-forward svc/prometheus-community-grafana 3001:80 -n monitoring &
# Then open http://localhost:3001

Error 4: cnpg plugin command not found after install

Symptom:

bash: kubectl-cnpg: command not found

Cause: The plugin binary isn’t in your PATH.

Fix:

# Check where dpkg installed it
which kubectl-cnpg || find / -name kubectl-cnpg 2>/dev/null

# Move to /usr/local/bin
sudo mv $(find /usr -name kubectl-cnpg 2>/dev/null | head -1) /usr/local/bin/kubectl-cnpg

# Verify
kubectl cnpg --help

Key Takeaways

✅ Kind (Kubernetes IN Docker) on WSL Ubuntu is the fastest way to get a real CloudNativePG environment running locally on Windows — no cloud account needed.

✅ A single kubectl apply with a 7-line YAML creates a fully replicated 3-instance PostgreSQL cluster. The operator handles initdb, replication setup, secrets, and services automatically.

✅ The cnpg kubectl plugin gives you direct psql access, cluster health status, switchover commands, and diagnostic reports — all from your terminal without exposing any ports.

✅ CloudNativePG’s built-in Prometheus metrics exporter requires zero extra configuration — just enable monitoring.enablePodMonitor: true in your Cluster spec and point Prometheus at it.

✅ The CloudNativePG Grafana dashboard gives you instant visibility into replication lag, WAL activity, storage usage, and connection counts — critical for both dev and production.

Test Your Knowledge

Ready to test what you’ve learned? Take the free quiz:

👉 PostgreSQL on Kubernetes Quiz → gradeupnow.in/postgres-replication-quiz/

20 questions · Instant feedback · Detailed explanations · Free

What’s Next

This post is part of the PostgreSQL on Kubernetes (CloudNativePG) series:

#	Post	Status
1	CloudNativePG Architecture on AWS EKS	✅ Published
2	Installing CloudNativePG on AWS EKS — Step by Step	✅ Published
3	PostgreSQL on Kind in WSL Ubuntu with Grafana Monitoring	📍 You are here
4	PostgreSQL Configuration & Pod Tuning on Kubernetes	⬜ Coming next week
5	Bootstrap Methods — initdb, Recovery, pg_basebackup	⬜ Coming soon

In Post 4, we go inside the Cluster spec and configure PostgreSQL parameters — shared_buffers, max_connections, WAL settings — all through the declarative YAML spec, plus how to set resource limits and requests for your pods.

👉 [Next Post: PostgreSQL Configuration & Pod Tuning on Kubernetes → coming next week]

References

Found this helpful? Share it with your DBA team! Questions? Drop them in the comments below.

Introduction

Prerequisites

Lab Environment

Architecture Overview — What We’re Building

Part 1: Set Up WSL 2 Ubuntu on Windows

Step 1.1: Enable WSL 2

Step 1.2: Install Docker Desktop with WSL 2 Backend

Part 2: Install Kind and kubectl

Step 2.1: Install kubectl

Step 2.2: Install Kind

Step 2.3: Install Helm

Part 3: Create Your Kind Kubernetes Cluster

Step 3.1: Create the Cluster

Step 3.2: Verify the Cluster

Part 4: Install the CloudNativePG Operator

Step 4.1: Apply the Operator Manifest

Step 4.2: Verify the Operator is Running

Step 4.3: Install the cnpg kubectl Plugin

Part 5: Deploy a PostgreSQL Cluster

Step 5.1: Download the Sample Cluster Manifest

Step 5.2: Apply the Cluster Manifest

Step 5.3: Watch the Cluster Initialize

Step 5.4: Verify with kubectl get pods -o wide

Step 5.5: Check Services

Part 6: Manage the Cluster with the cnpg Plugin

Step 6.1: Full Cluster Status

Step 6.2: Connect to the Primary with psql

Step 6.3: Connect to a Replica

Step 6.4: Useful cnpg Plugin Commands Reference

Part 7: Enable Prometheus Monitoring and Grafana Dashboard

Step 7.1: Add the Prometheus Community Helm Repo

Step 7.2: Install the Kube-Prometheus Stack

Step 7.3: Deploy a Cluster with Metrics Enabled

Step 7.4: Access Prometheus

Step 7.5: Access Grafana

Step 7.6: Import the CloudNativePG Grafana Dashboard

Step 7.7: Add Default Prometheus Alert Rules

Part 8: What’s Built-In to the CloudNativePG Metrics Exporter

Common Errors and Fixes

Error 1: Kind cluster fails to start — “docker daemon not running”

Error 2: Pods stuck in Pending — “no nodes available to schedule pods”

Error 3: Port-forward conflicts — “address already in use”

Error 4: cnpg plugin command not found after install

Key Takeaways

Test Your Knowledge

What’s Next

References

Leave a Comment Cancel Reply
